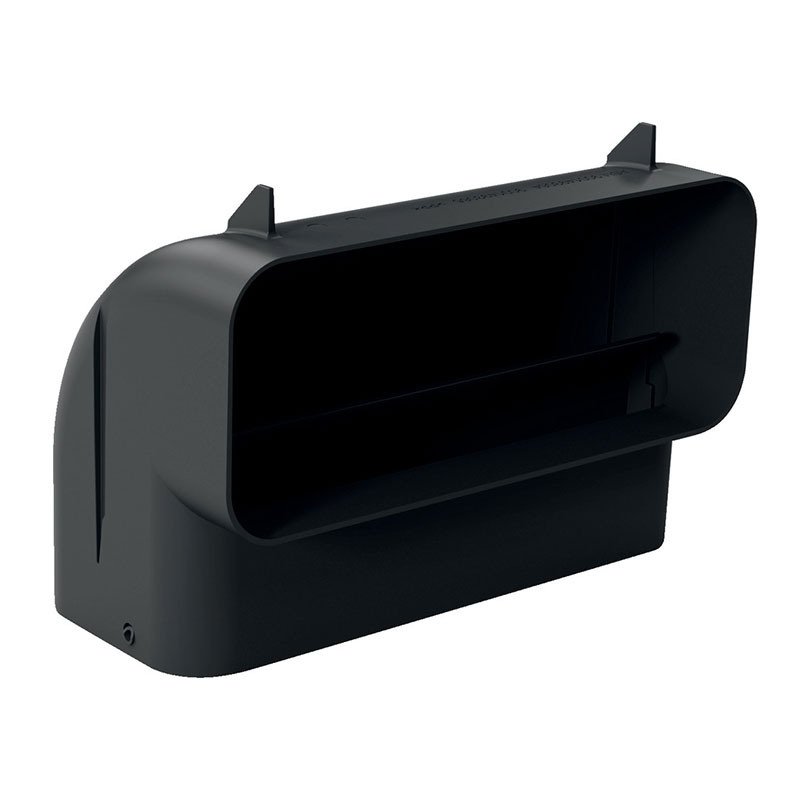

Bosch 90° Flat Duct Vertical Bend HEZ9VDSB3

Bosch 90° Flat Duct Vertical Bend HEZ9VDSB3

Product Description

Complete your venting cooktop installation with the genuine Bosch HEZ9VDSB3 90° Flat Duct Vertical Bend. Engineered specifically for integrated hob extractors (downdraft induction hobs), this compact, small-radius vertical elbow redirects airflow vertically downwards behind kitchen cabinetry with minimal pressure loss.

Its small radius profile makes it the ideal choice for compact kitchen layouts, island setups, or installations with standard worktop depths (starting at 60cm). Built from high-grade flame-retardant plastic with integrated guide vanes, the HEZ9VDSB3 ensures efficient, whisper-quiet air movement whether routed for external ducted venting or recirculated air configurations.

Key Features & Highlights

• Precision 90° Vertical Turn: Transitions flat ducting smoothly from horizontal cooktop outlets down into vertical void spaces.

• Small Radius Compact Design: Engineered specifically to fit tight cabinet clearances behind drawers without sacrificing airflow volume.

• Aerodynamically Optimized: Internal air deflectors minimize air resistance, keeping extraction performance high and noise levels low.

• Easy Push-Fit Connection: Male connector profile snaps securely into female flat duct elements or connector sleeves (e.g., HEZ9VDSS1).

• Fire-Resistant Material: Manufactured from durable, flame-retardant plastic compliant with strict European building standards.

• Versatile Configuration: Suitable for both ducted extraction and recirculated ducting installations across Bosch, Siemens, Neff, and Gaggenau venting hobs.

Technical Specifications
